MIL-STD Certificates Awarded

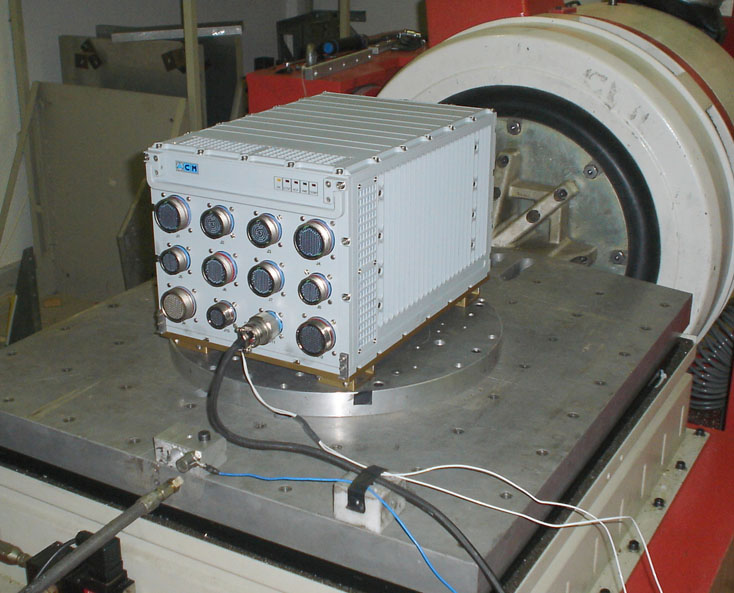

MIL-STD-461E Shock & Vibration Testing

CM Computer products are delivered Tested, Qualified & Certified per Military Standards to guarantee immediate fault free operation in the most severe Military & Aerospace environments.

CM offer a complete testing program that differentiates us from our competitors; reducing program risk & demonstrating the quality of our ATR products.

DEKRA, independent European/American Official Laboratories conduct our qualification programs in conformance with Military MIL-STD testing procedures & guidelines. Certificates & Testing Reports are delivered to our ATR customers.
Read More

Electromagnetic Compatibility

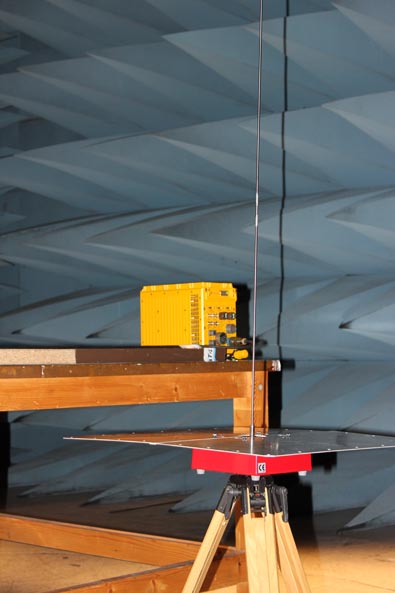

CM ATR chassis surpass MIL-STD-461 EMI/EMC testing, carried out according to the stringent criteria requirements of the US Navy and Air Force. Our ATR products have passed the most restrictive EMI levels for Military Transport Aircraft (>25m), Military Fighters (<25m) and Military Helicopters. EMI levels exceed Military & Aerospace requirements.

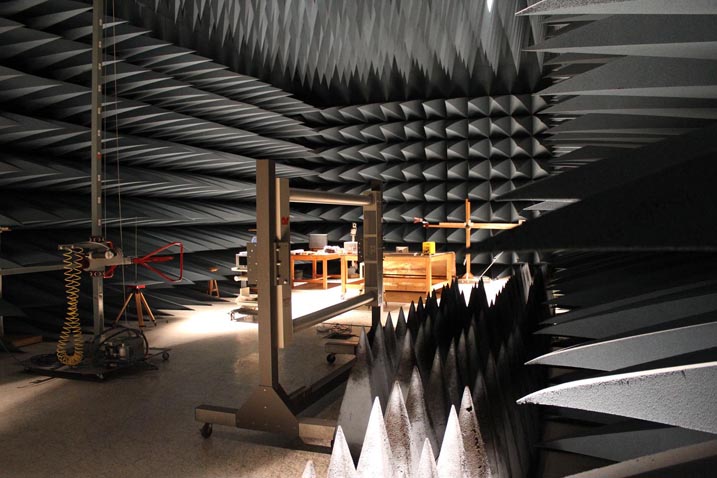

MIL-STD-461 Testing

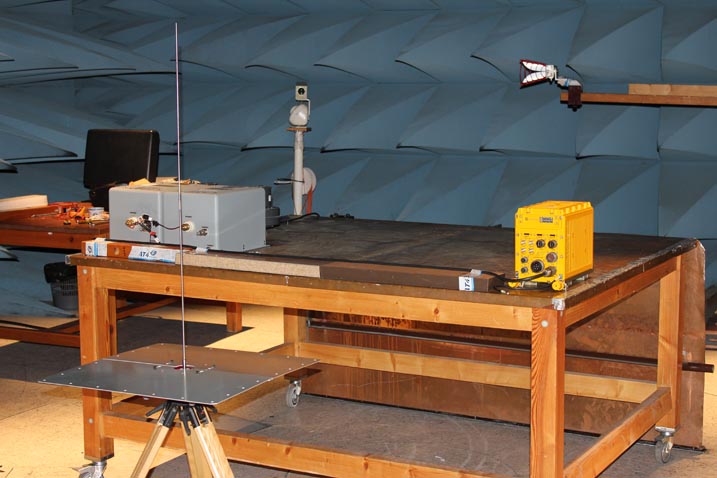

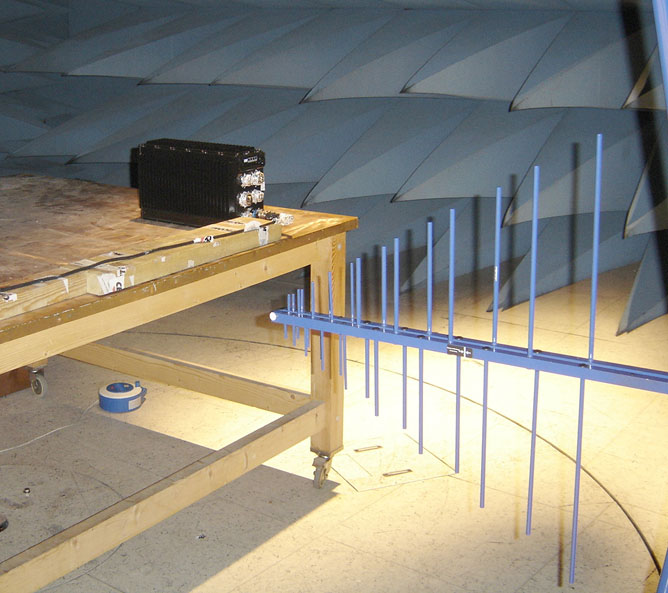

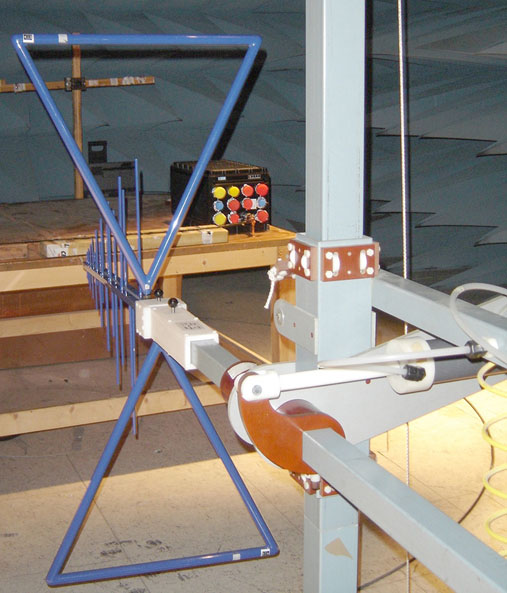

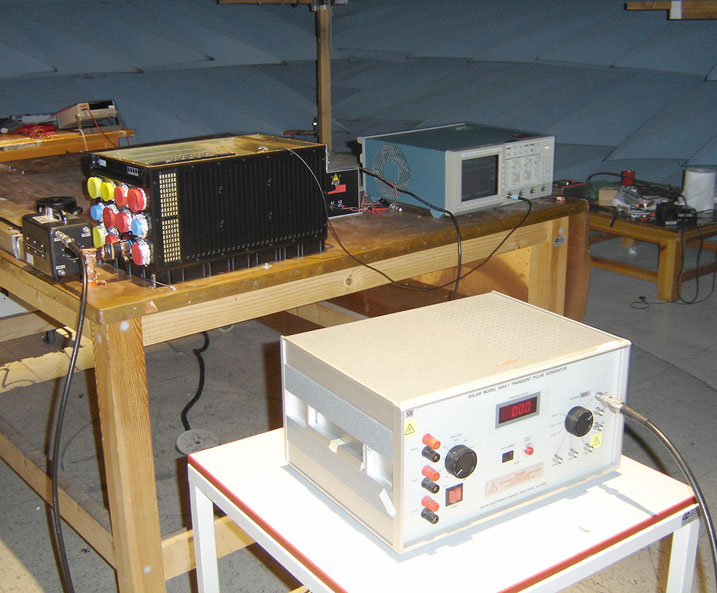

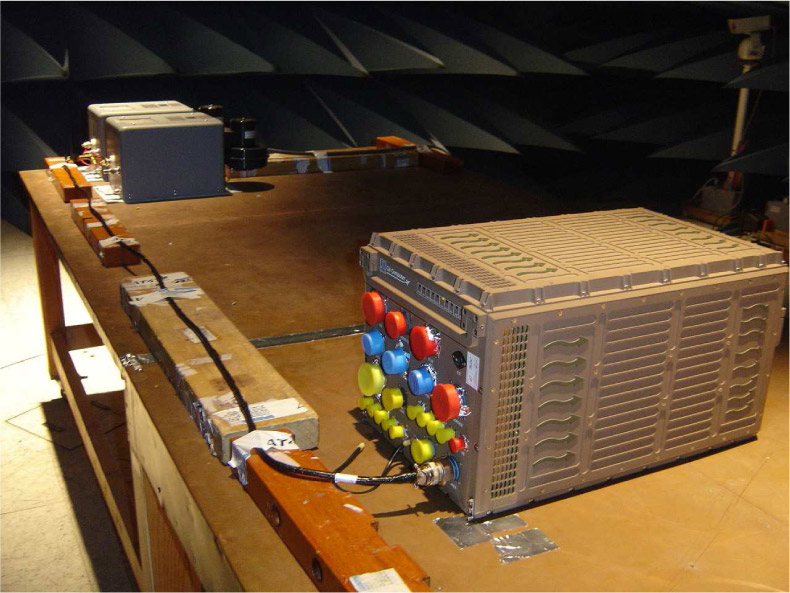

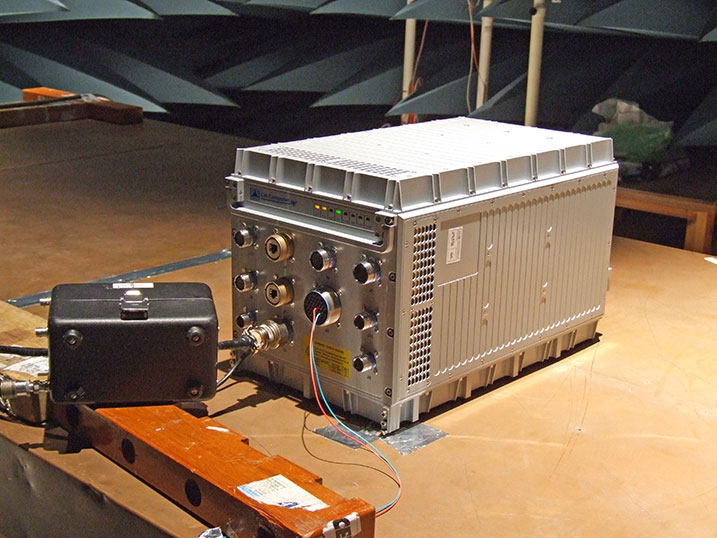

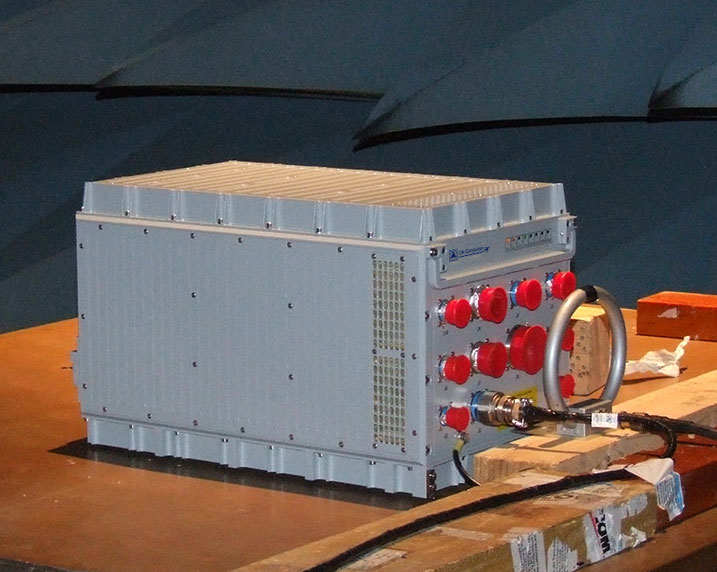

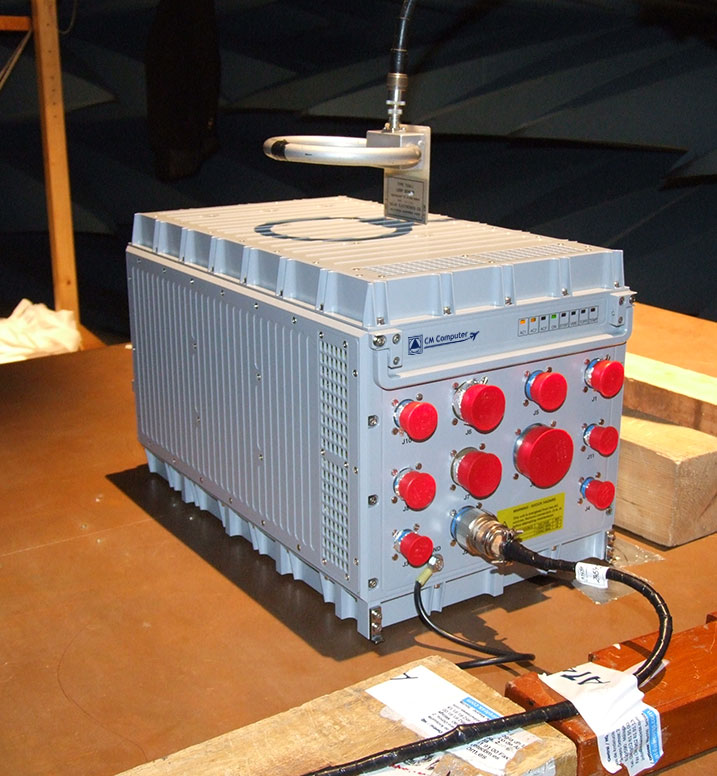

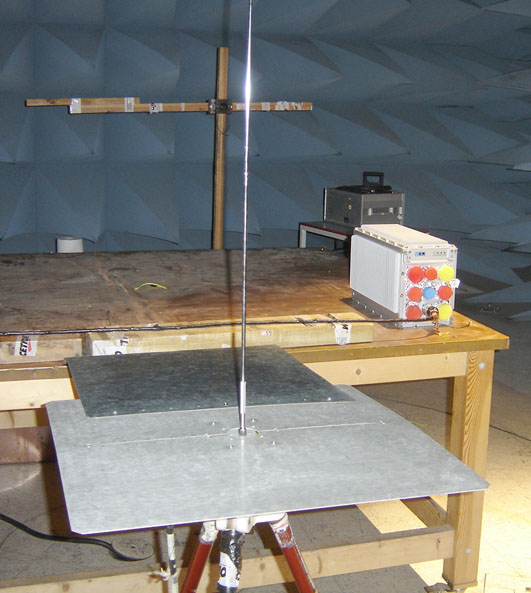

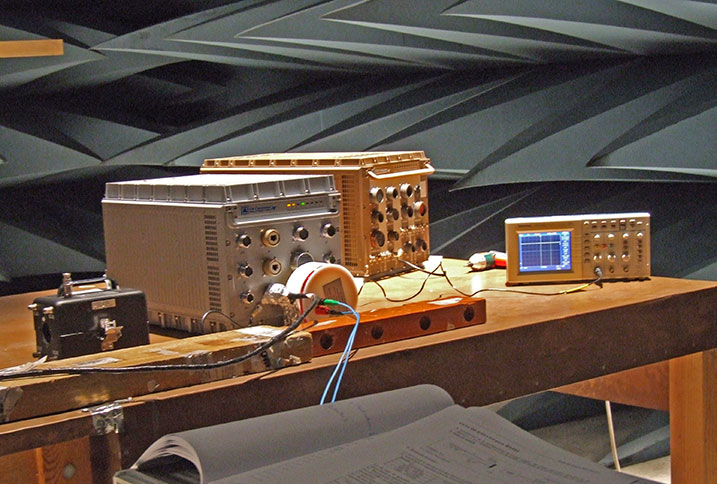

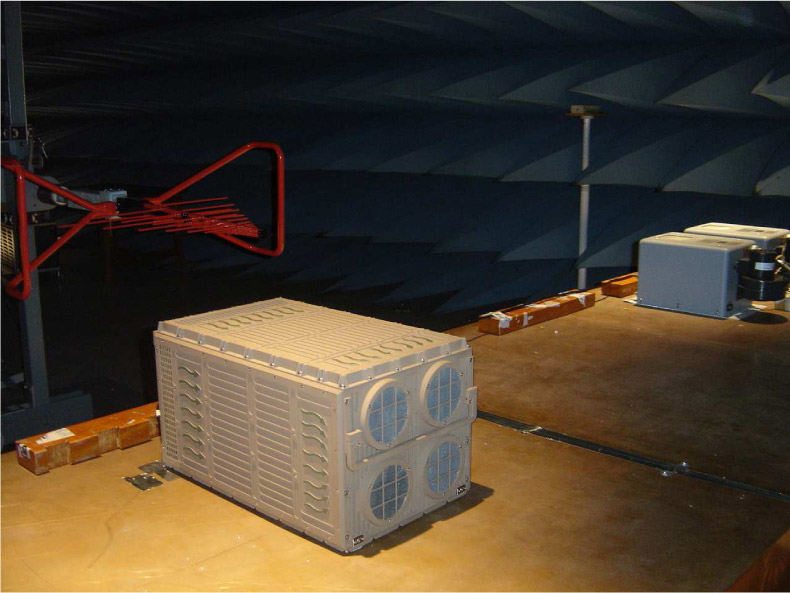

  • MIL-STD-461E Radiated Emissions Testing

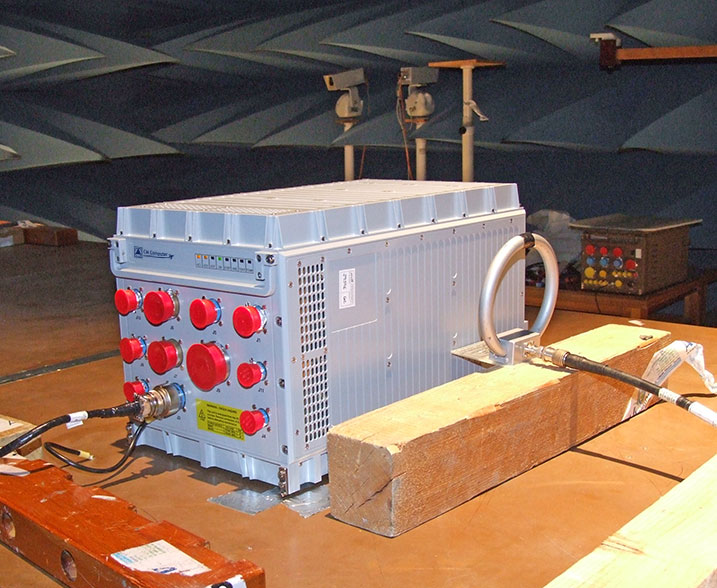

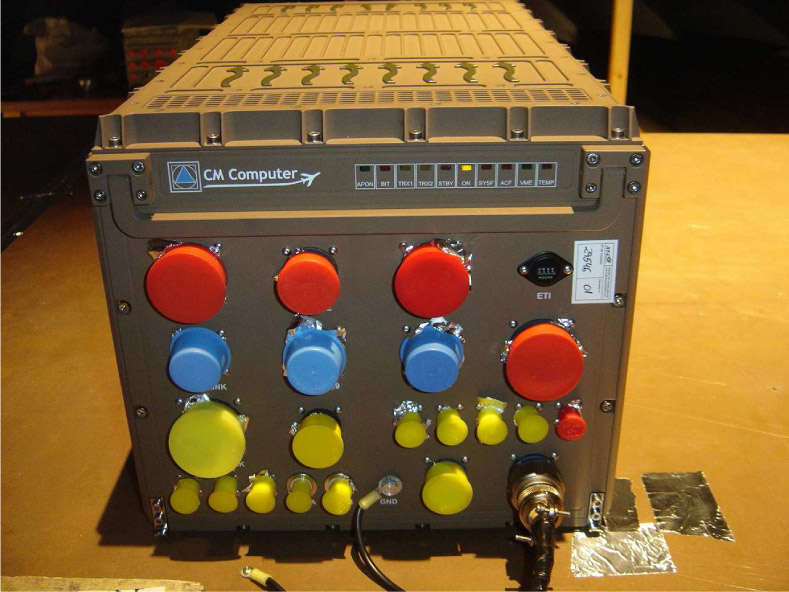

    MIL-STD-461E (6U ATR)

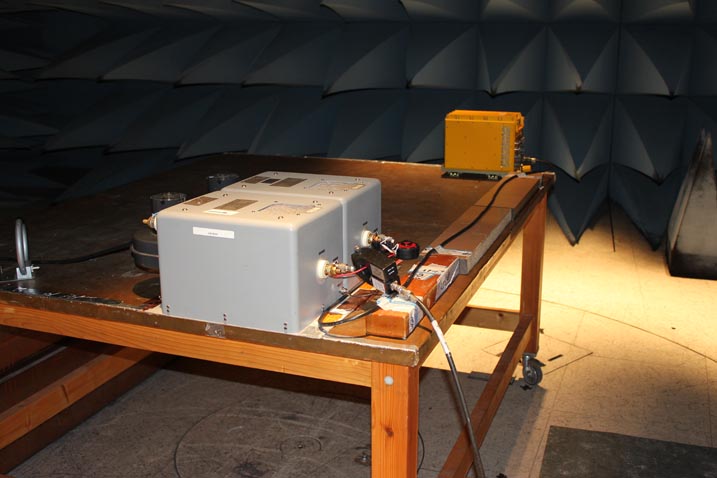

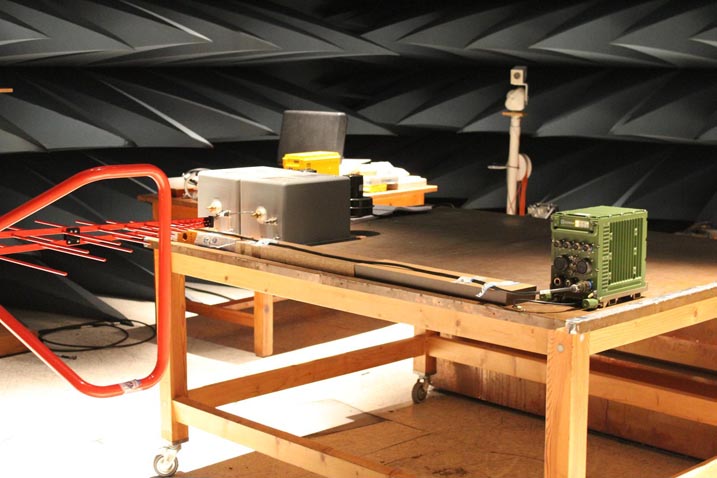

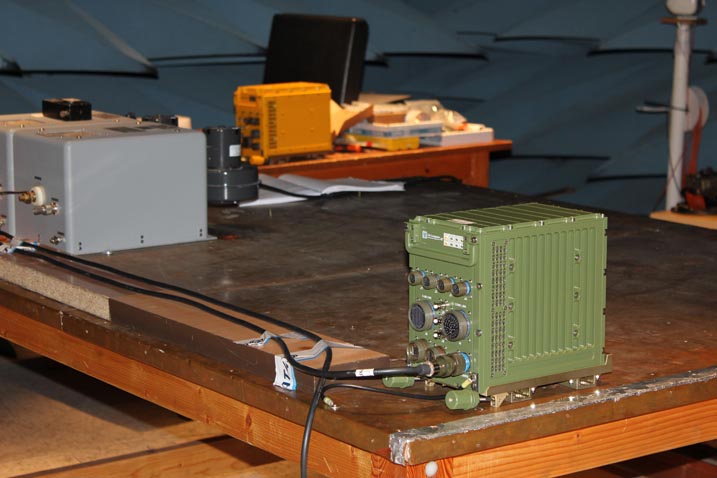

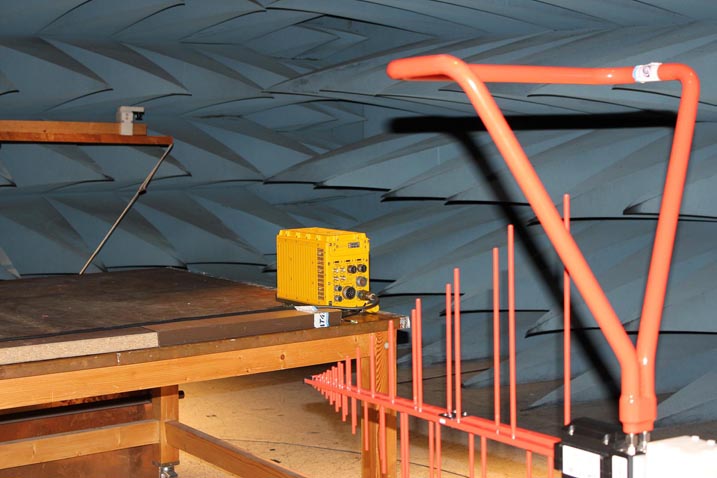

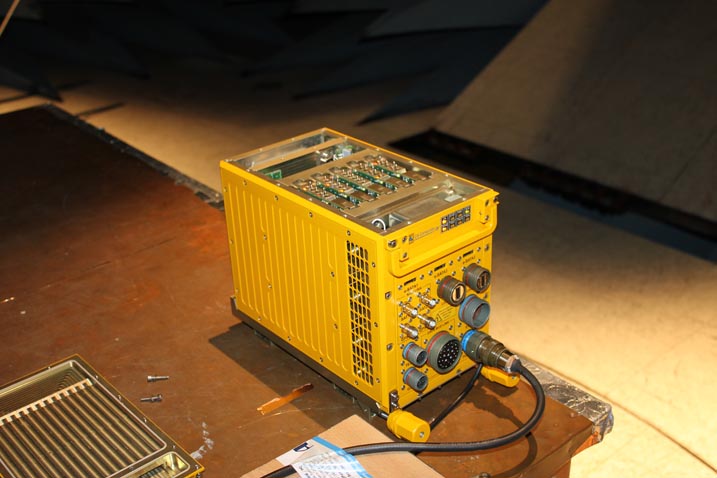

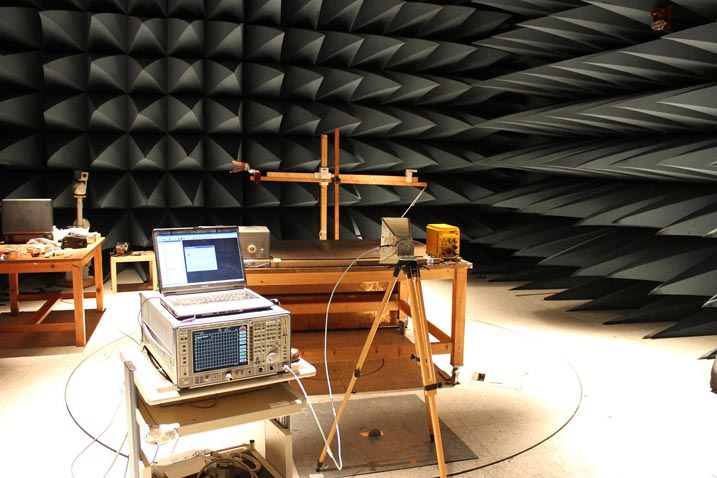

  • MIL-STD-461F Conducted Susceptibility Testing

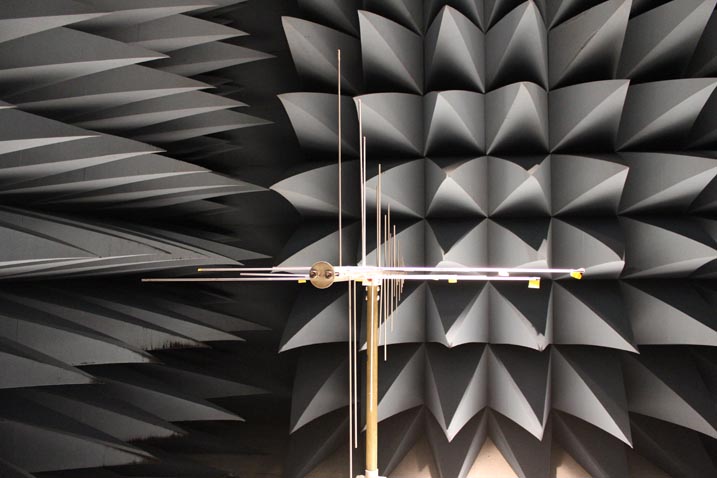

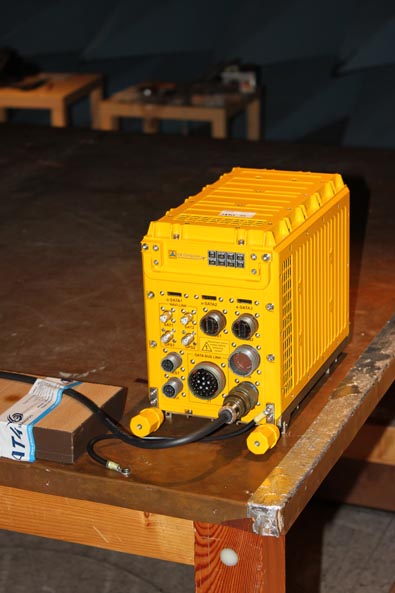

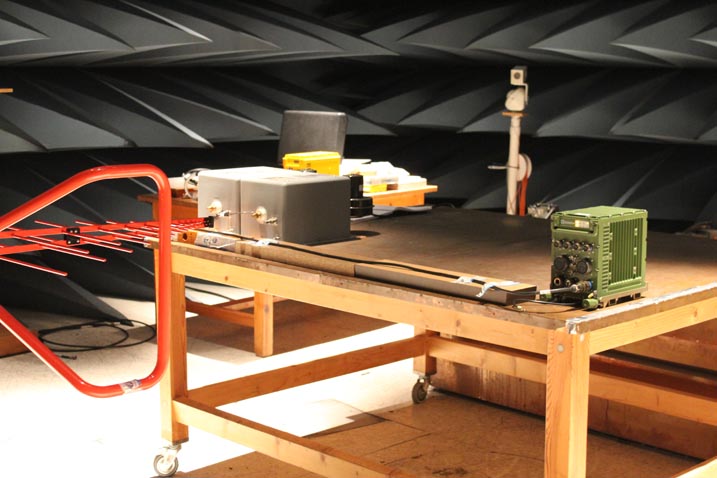

    MIL-STD-461F (3U ATR)

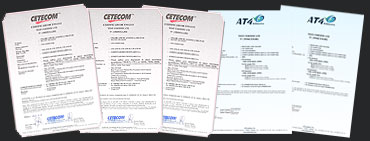

Available MIL Certificates

MIL-STD-461E/F Conducted Emissions

  • EMI CE102 115V (10 KHz-10MHz). Power Lead ON.
  • EMI CE102 115V (10 KHz-10MHz). Power Lead L1.
  • EMI CE102 28V (10 KHz-10MHz). Power Lead ON.
  • EMI CE102 28V (10 KHz-10MHz). Power Lead L1.
  • EMI CE101 115V (60 Hz-10KHz). Power Lead L1.
  • EMI CE101 115V (60 Hz-10KHz). Power Lead ON.

MIL-STD-461E/F Conducted Susceptibility

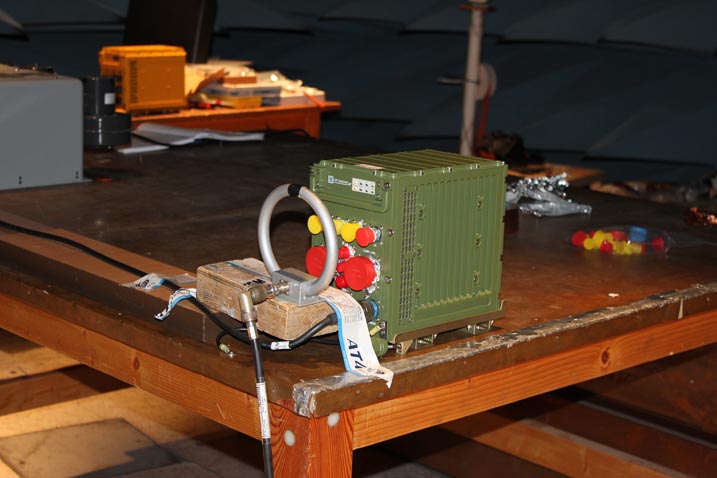

  • CS101 (30 Hz-150KHz). Electromagnetic Immunity.
  • CS114 (10 KHz-200MHz). Electromagnetic Immunity.
  • CS115 (Impulse Excitation).
  • CS116 (10 KHz-100MHz). Electromagnetic Immunity.

MIL-E-5400T for Avionics Class 1

3U ATR MIL-461F 6U ATR MIL-461E

MIL-STD-461E/F Procedures

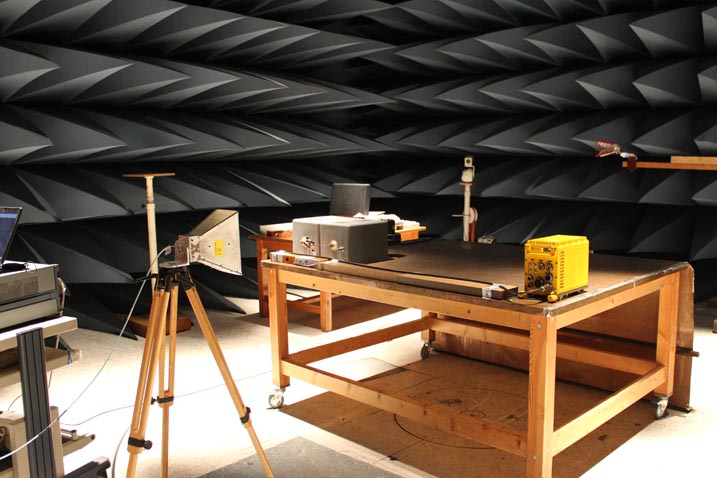

MIL-STD-461E/F Radiated Emissions

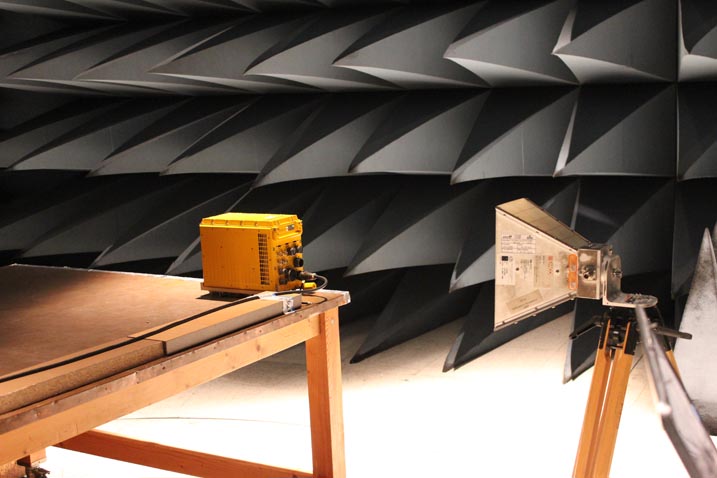

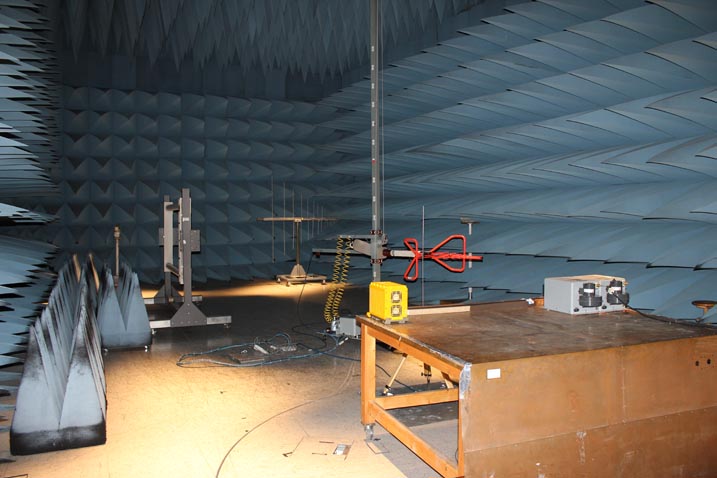

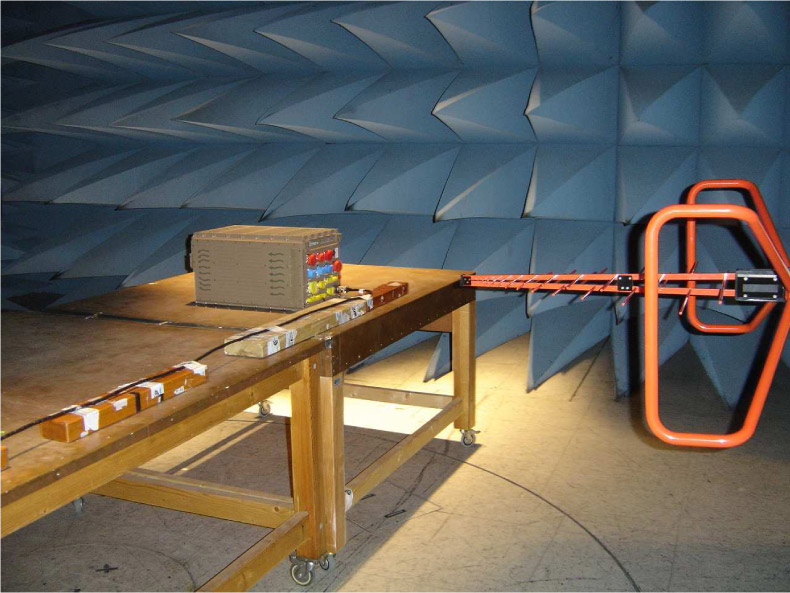

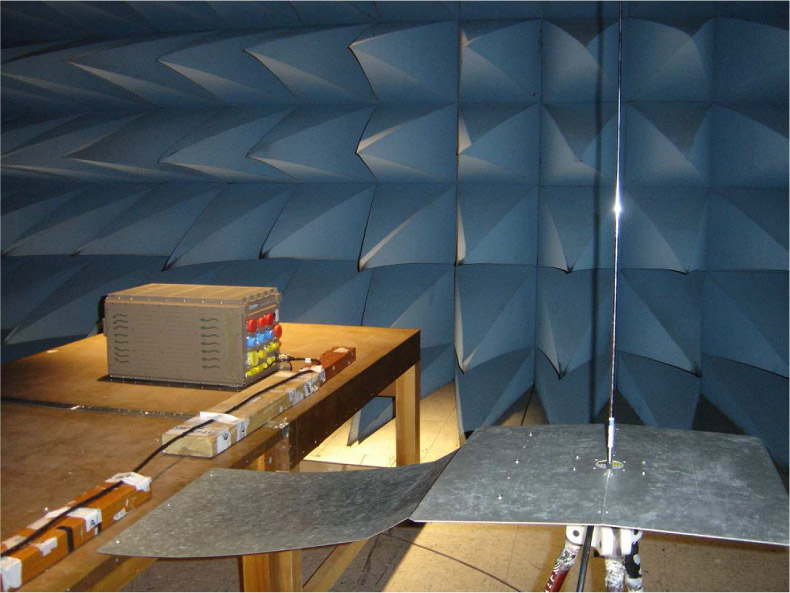

  • Radiated E Field RE102 ROD Navy Fixed & AF (10KHz-1GHz).
  • Radiated H Field RE101 ROD Navy Fixed & AF (30Hz-100KHz).
  • Radiated Field ER RE102-3 ROD Navy Fixed & AF (2MHz-30MHz).

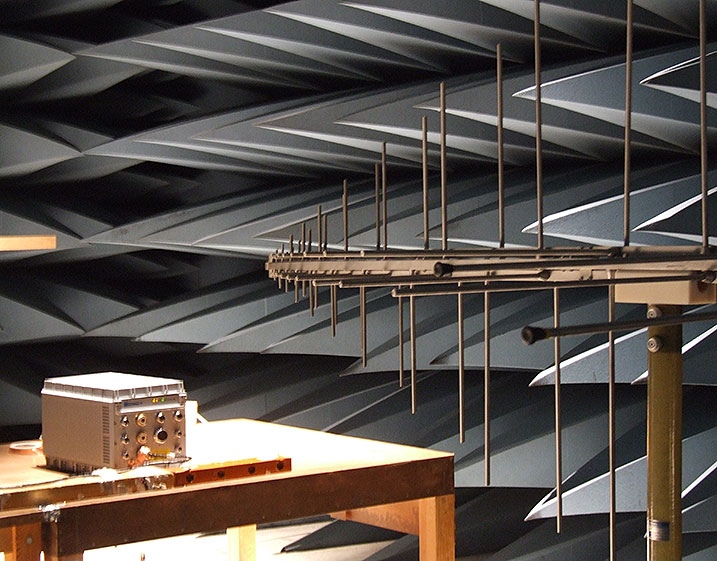

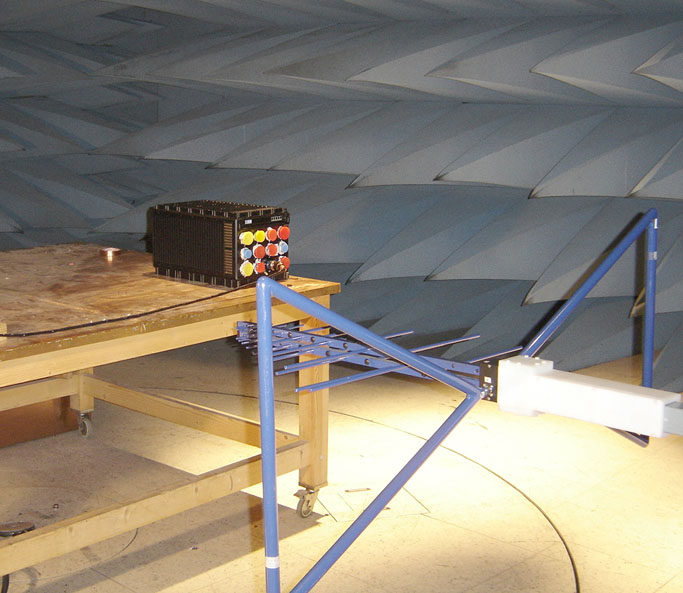

  • Radiated Field ER RE102-3 BILOG Navy Fixed & AF (30MHz-1GHz), Horizontal Polarization.
  • Radiated Field ER RE102-3 BILOG Navy Fixed & AF (30MHz-1GHz), Vertical Polarization.

MIL-STD-461E/F Radiated Susceptibility

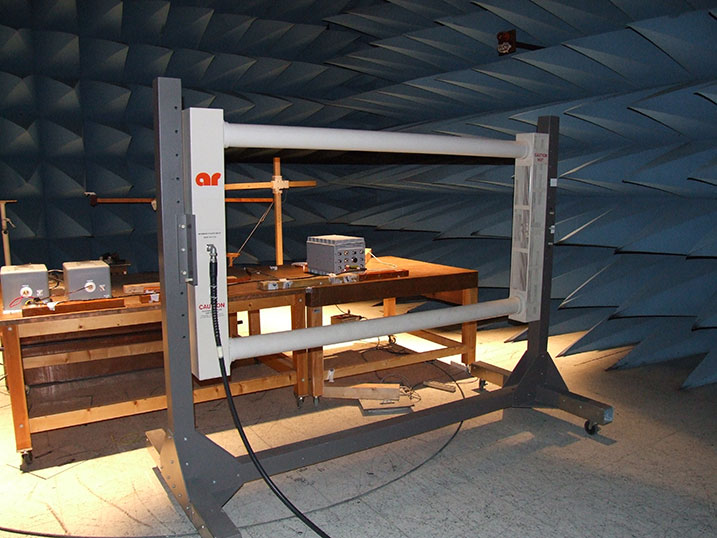

  • RS101 Radiated H Field (30Hz-150KHz). Radiated Immunity.
  • RS103 Radiated E Field (2MHz-1GHz). Radiated Immunity.

MIL-STD-461 is subject to revisions; CM products conform to 461E as standard. Latest generations of our 3U ATRs & all subsequent chassis have been certified according to MIL-STD-461F criteria.

CM ATR models /S, /SEF & /SEF-HP are compliant with MIL-STD-740-1 / MIL-STD-1474 (54dB A-weighted) per Grade A12.

Environmental Engineering

All CM ATRs surpassed MIL-STD-810F chassis environmental testing. Certificates achieved qualify our products for practically all types of military applications irrespective of the installation platform; Avionics, Ground vehicles, Naval Systems, etc.

Note: tests were performed without shock absorbers during the shock & vibration procedures.

MIL-STD-810

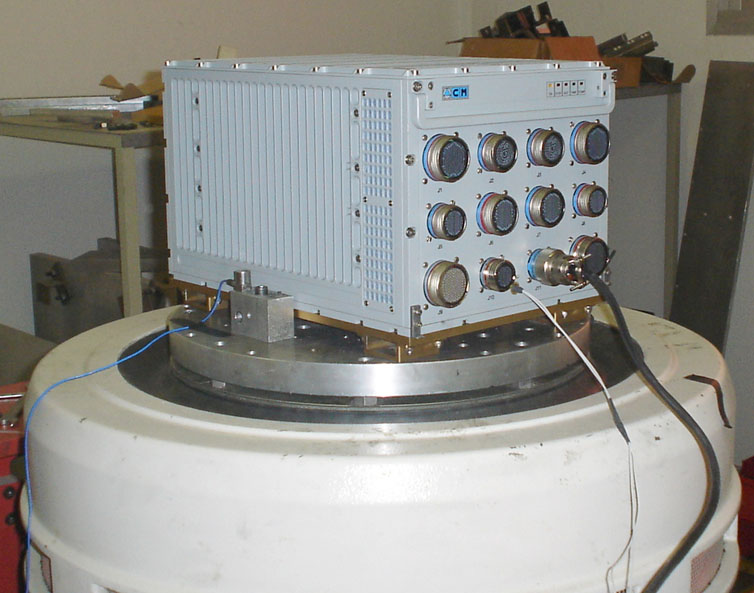

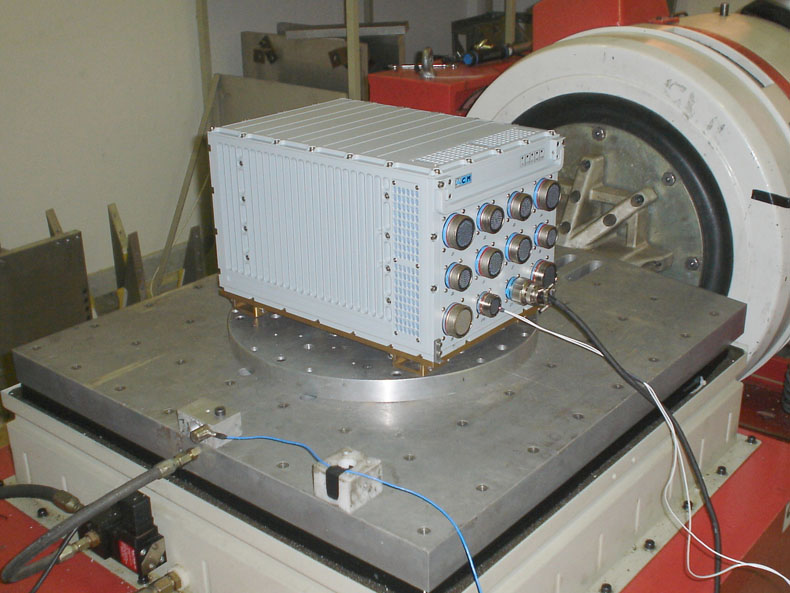

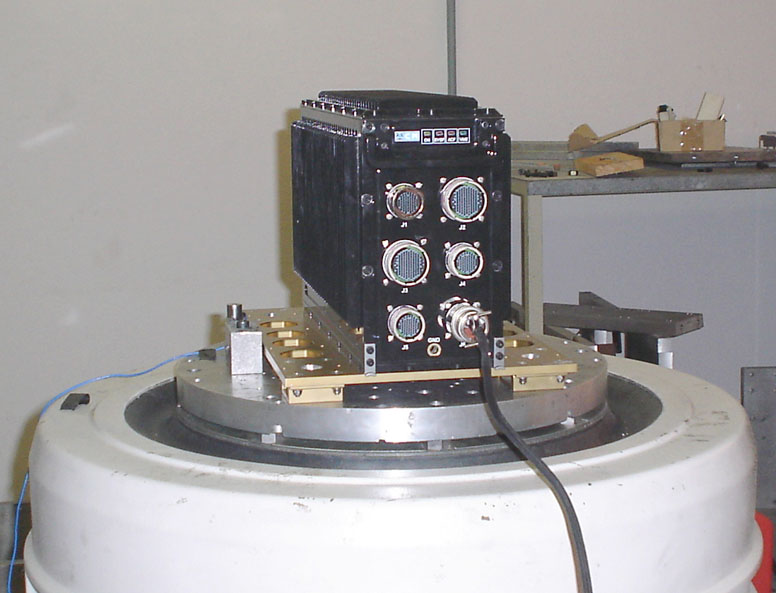

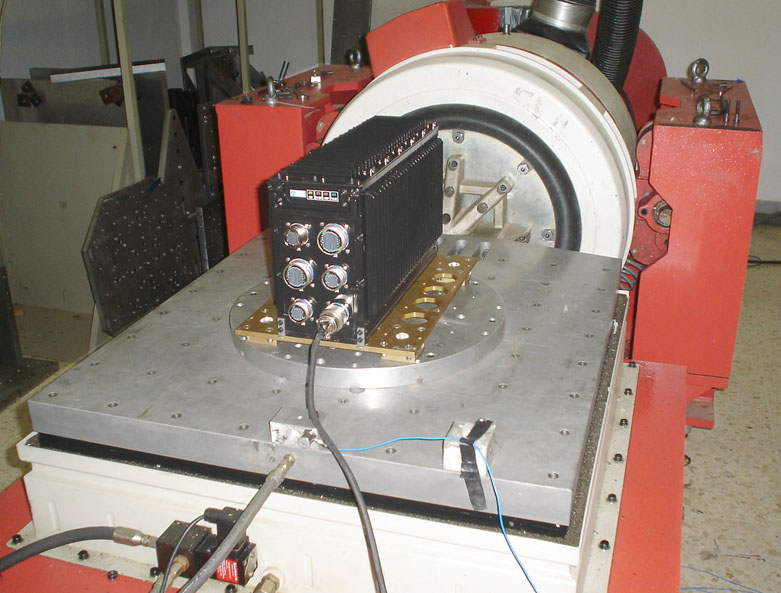

  • MIL-STD-810F Shock & Vibration Testing

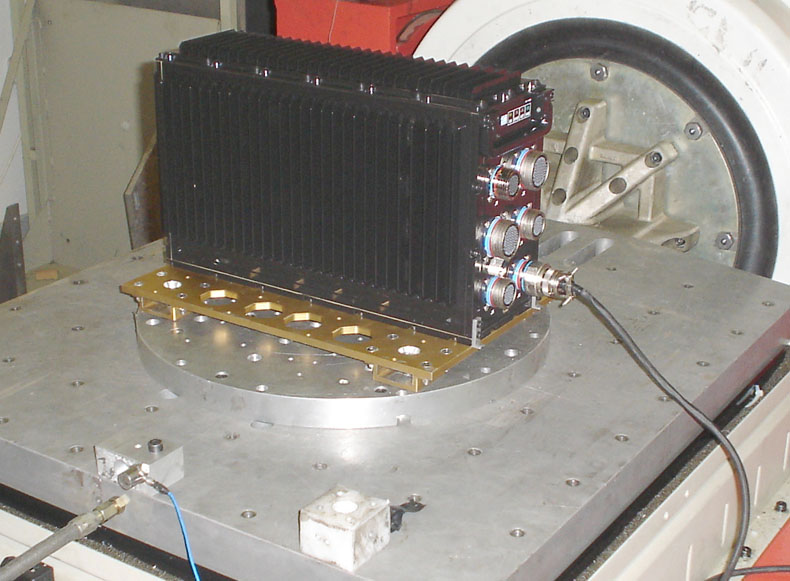

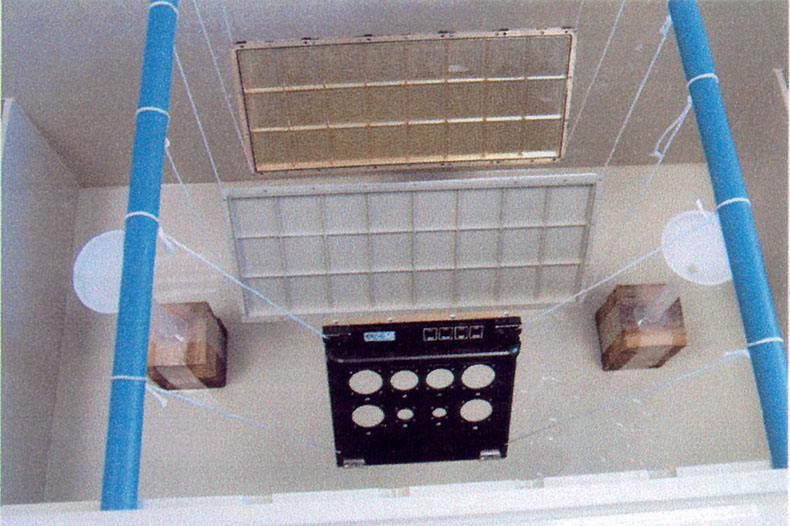

    Shock & Vibration

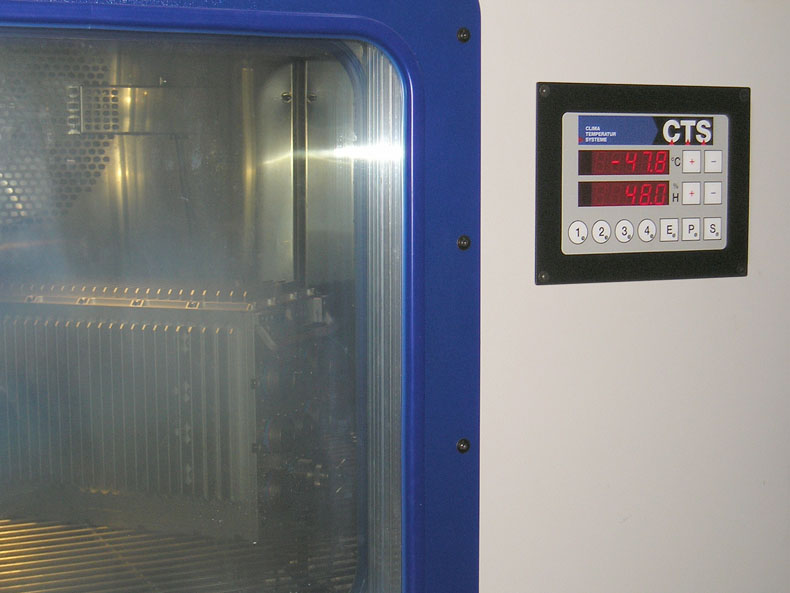

  • MIL-STD-810F Temp. Humidity & Salt Fog Testing

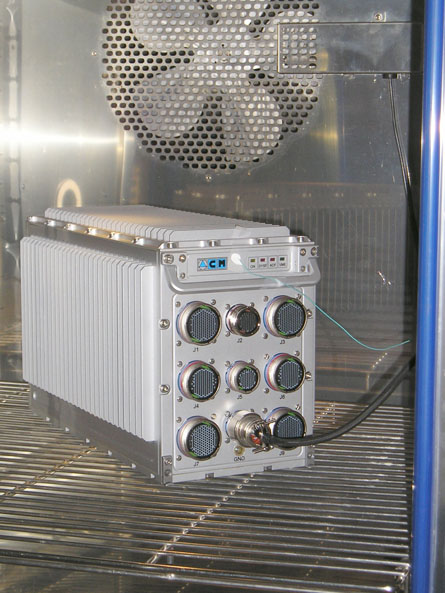

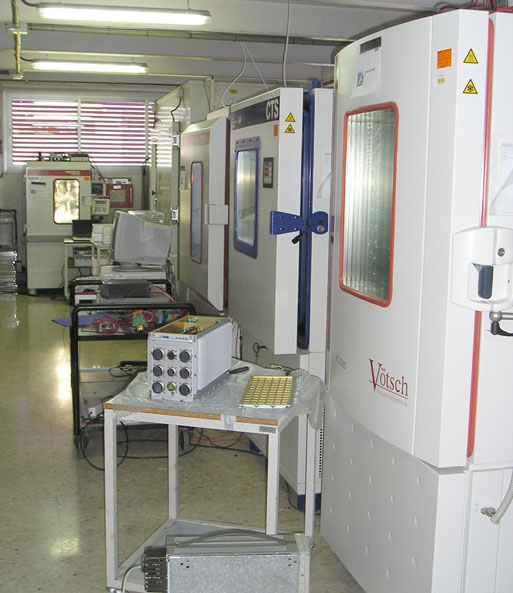

    Temp. Humidity & S.Fog

Available MIL Certificates

MIL-STD-810F High Temperature (Method 501.4)

  • Operating: Stabilized @ +80°C for 2 hours.
  • Storage: Stabilized @ +100°C for 2 hours.

MIL-STD-810F Low Temperature (Method 502.4)

  • Operating: Stabilized @ -55°C for 2 hours.
  • Storage: Stabilized @ -55°C for 2 hours.

MIL-STD-810F Fungus (Method 508.5)

  • Various Fungus:resistance methods were applied to chassis materials during a retention time of 28 days @ 30°C.

MIL-STD-810F Humidity (Method 507.4)

  • Pre-conditioning: @ 23°C & 50% RH. 5-48 hour temp./humidity cycles of 60°C 95% RH, 30°C 95% RH & 20°C 95% RH. Tested for operation every 24 hours.

MIL-STD-810F Shock (Method 516.5)

  • Operating: ATR exposed to 18 pulses per axis of saw tooth shock @ 20g rms 11ms.

MIL-STD-810F Procedures

MIL-STD-810F Altitude (Method 500.4)

  • Operating: Up to 70,000 ft., 4 hours duration.

MIL-STD-810F Acceleration (Method 513.5)

  • Operating: Up to 12g on 6 axis.

MIL-STD-810F Vibration (Method 514.5)

  • Operating: Tests made before, during & after various levels & duration of vibration (15Hz-2KHz @ 12 RMS. 3 axis) Category 12 for Jet Aircraft, 4 hour duration.

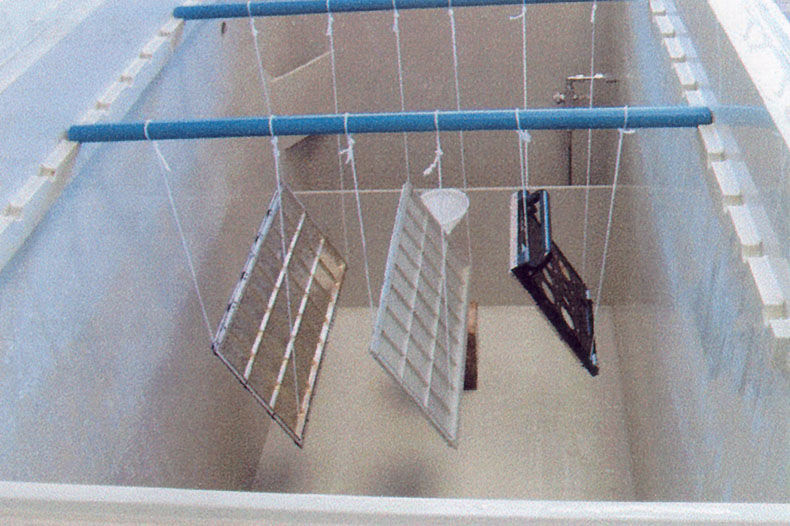

MIL-STD-810F Salt Fog (Method 509.4)

  • ATR @ 35°C for 2 hours prior to test. Exposed ATR to 24 hours of 5% NaCl salt fog (PH=6.3), followed by 24 hours of drying. ATR exposed for another 24 hours with 5% exposure & finally removed for another 24 hour drying period. 4 days duration.

MIL-STD-810G

MIL-STD-810F Acceleration (Method 513.6)

  • Operating: Up to 10g on 6 axis.
  • Structural: Up to 15g on 6 axis.

CM products conform to 810F as standard. Latest generations of ATRs are subject to MIL-STD-810G compliance.

ATR MIL-STD-810F

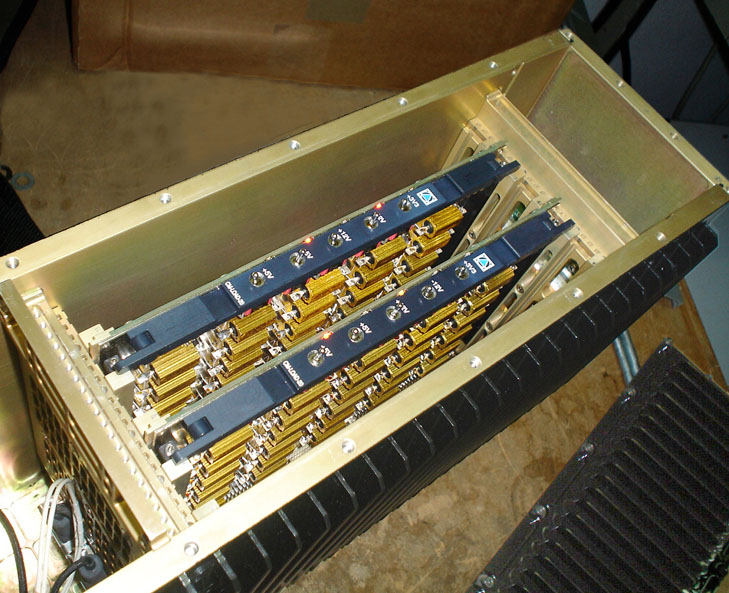

MIL-STD ATR Components

CM maintains the theory that each component employed must be specifically selected in accordance with rigorous quality criteria.

All units are individually tested after production and carefully screened per Military Standards before the release of a fully tested sub-system. All CM products have a 2 year warranty.

MIL-STD ATR Components

CM ATR chassis materials and electronic parts are fully compliant to manned space flight requirements.

  • MIL-C-24308 Class I Power Connectors
  • MIL-I-45208 & MIL-STD-810F DC/DC Converters
  • MIL-S-13949/5 Class V Printed Circuit Board
  • MIL-I-46058C Multilayer Military Conformal Coating
  • MIL-STD-1547B Corrosion Treatment on Aluminum
  • MIL-STD-704F input compatibility (115 VAC or 28 VDC)
  • MIL-STD-704F & MIL-STD-1275D Power Supply
  • MIL-STD-1275D Compliance
  • MIL-C-83286B External Surface Painting
  • MIL-C-7438G EMI/EMC Honeycomb Filters
  • MIL-R-6130C EMI/EMC Gasket
  • MIL-F-85731/1B Mounting Tray Clamps
  • MIL-STD-883 & MIL-PRF-38535H TTL Chips
  • MIL-DTL-55302F Class I VMEbus Connectors
  • MIL-C-24308C Class I Cannon Type D
  • MIL-STD-461E Power Supply Front-end Modules
  • MIL-DTL-38999 Circular Connectors on Front Panel
  • MIL-I-45208A & MIL-STD-105E NAS-622 Hooks
  • MIL-C-1291 Front Panel Bonding Point
  • MIL-STD-810C, MIL-B-23071C & MIL-B-28873 Fans
  • AISI 316 (A4) Screws, Inserts & Accessories
  • AW6082-T651 Aeronautical Aluminum
  • Full galvanic isolated outputs > 500 VRMS
  • MIL-STD Awarded

    MIL-STD-461E/F

    • CE102 115V (10 KHz-10MHz)
    • CE102 115V (10 KHz-10MHz)
    • CE102 28V (10 KHz-10MHz)
    • CE102 28V (10 KHz-10MHz)
    • CE101 115V (60 Hz-10KHz)
    • CE101 115V (60 Hz-10KHz)
    • CS101 (30 Hz-150KHz)
    • CS114 (10 KHz-200MHz)
    • CS115 (Impulse Excitation)
    • CS116 (10 KHz-100MHz)
    • RE102 ROD Navy Fixed & AF (10KHz-1GHz)
    • RE101 ROD Navy Fixed & AF (30Hz-100KHz)
    • RE102-3 ROD Navy Fixed & AF (2MHz-30MHz)
    • RE102-3 BILOG Navy Fixed & AF (30MHz-1GHz), Horiz.
    • RE102-3 BILOG Navy Fixed & AF (30MHz-1GHz), Vert.
    • RS101 (30Hz-100KHz)
    • RS103 (2MHz-1GHz)
  • MIL-STD Awarded

    MIL-STD-810F/G

    • High Temperature (M.501.4)
    • Low Temperature (M.502.4)
    • Temperature Shock (M.503.4)
    • Humidity (M.507.4)
    • Shock (M.516.5)
    • Acceleration (M.513.5)
    • Altitude (M.500.4)
    • Vibration (M.514.5)
    • Salt Fog (M.509.4)
    • MIL-E-5400T Avionics Class 1
  • MIL-STD Testing Procedures
