6U SIXHEX-1 Description
Sealed, 1" pitch, high performance dry-air 6U chassis incorporates four heat exchangers and air re-circulation fans inside. This minimum maintenance ATR is ideal for applications where ambient air is laden with hostile or harmful contaminants.

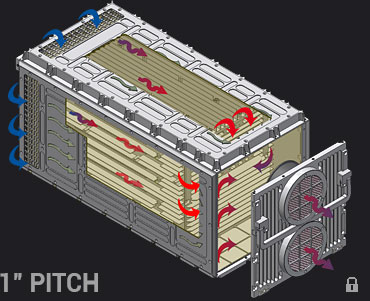

Heat generated within the enclosure is conducted to the hollow sidewalls, top cover & rear panel heat exchanger where it is dissipated to the ambient environment by forced air rear fans or by vehicle platform air plenum. Internal air recirculation fans ensure constant airflow across modules.
CM-ATR-1S5/SIXHEX
The 6U SIXHEX-1 chassis is available in 5 & 7 slot versions (½ ATR, ¾ ATR, 1 ATR), supporting VME, cPCI, VPX, VPX-VME & cPCI-VME hybrid backplanes. Total PSU power of up to 825 watts may be installed. Custom modifications can be designed upon request.

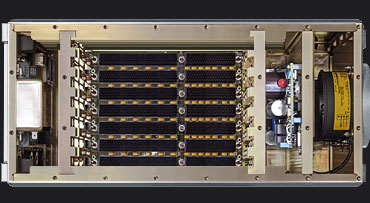

Internal layout is divided into 4 independent metallic partitions. I/O section at the front, card-cage, PSU section & exhaust fans at the rear. This improves EMI/EMC performance & reduces PSU noise on system electronics.
This 1" pitch chassis has been designed exclusively for VME wedgelock IEEE P1101.2, Compact PCI 1101.2/IEC/118/ CD and VPX VITA 46.0/.1/.10/.3/.4/.7 conduction cooled modules. A mixed card-cage, supporting air-cooled and conduction-cooled modules my be selected upon request.
6U SIXHEX-1 Performance
The 6U SIXHEX-1 chassis is suitable for high wattage sealed applications that demand superior cooling capability.

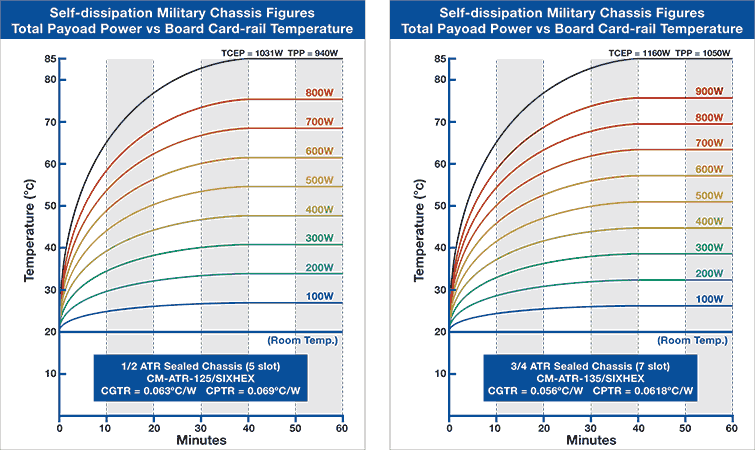

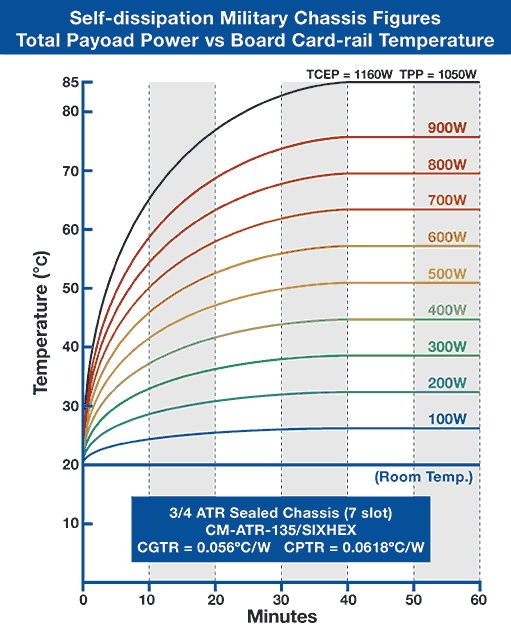

SIXHEX-1 - Chassis Global Thermal Resistance (CGTR) coefficient:
ΔT/W = 0.063°C (½ ATR) | 0.056°C (¾ ATR) .
SIXHEX-1 - Chassis Payload Thermal Resistance (CPTR) coefficient:
ΔT/W = 0.069°C (½ ATR) | 0.0618°C (¾ ATR).

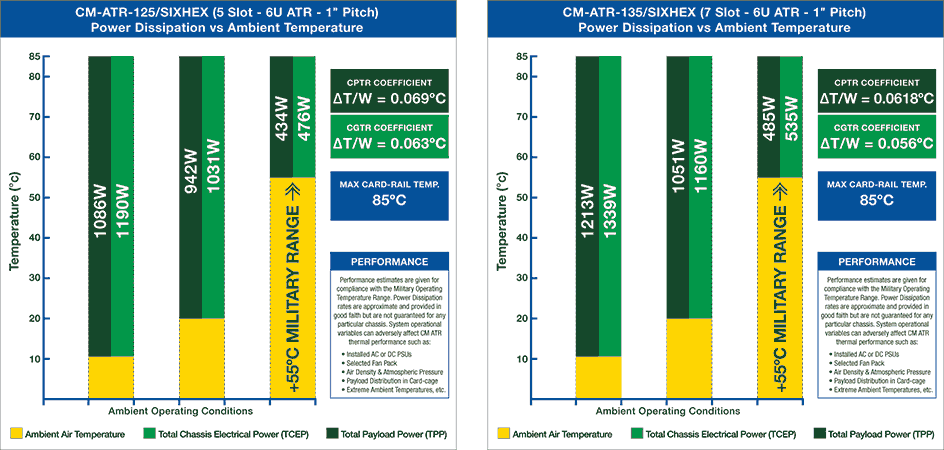

For reliable operation it is recommended the maximum Payload Power not be exceeded. Subject to operating conditions.
All CM 6U ATR chassis are delivered tested, qualified and certified per Military Standards MIL-STD-461E & MIL-STD-810F.
6U SIXHEX-1 Backplanes
CM 6U SIXHEX-1 military backplanes are available in VPX, VMEbus, cPCI, or combinations of VPX-VME64 or cPCI-VME64 hybrids, providing standard bus slot and signal daisy-chain functionalities. SIXHEX-1 backplanes are 1" pitch & deliver full compatibility with 0.8" pitch modules.
All 6U backplanes install specific TTL logic circuitry for driving up to 8 front panel user LED indicators. Units fitted with a Temperature Supervisory Unit will also drive an additional panel LED TEMP (over/under temperature indicator).
- VME64x backplanes conduction-cooled IEEE-1101.2 & air-cooled IEC-297/IEEE.1101.1 modules.
- Compact PCI backplanes according to IEC 1076 / PCI 1101.10/IEC 48D/118/CD standards.
- VPX backplanes conform to VITA 46.0/.1/.10/.3/.4/.7.
- VPX-VME64x Hybrid feature mesh-fabric slots that support both VITA46 (VPX) & legacy VME64x slots.
All SIXHEX-1 backplanes integrate a Temperature Supervisory Unit (TSU) with panel LED (over/under temperature) that controls Power Supply & Fan operation. Remote optoisolated control switches for ‘Battle-short’ & chassis PSU ‘on/standby’ are fitted & active as standard.
CM 6U military backplanes allow unlimited pin I/O wiring capability. Flexible top & bottom wiring integration is facilitated by a standard 25mm bottom cavity clearance to avoid requiring a custom backplane.
The final slot in SIXHEX-1 7 slot chassis allow for bus functionality & contain power/control provisions to accept a eurocard-size metallically caged Redundant PSU. A single slot RPSU up to 575W operates in parallel with main PSU on a load-sharing basis to minimize component stress.
Custom backplanes maybe designed upon customer request.
CM backplanes support one or two 100W power sockets for optional micro-size DC/DC military converters with user defined output voltage. The converters are useful for increasing the +5VDC or +3.3VDC power lines or for generating isolated positive, negative or bipolar auxiliary DC voltages.
Class 1 military power input connectors offer reliable shock & vibration interconnectivity between chassis internal modules and allows high DC current rates with low voltage drops & minimum contact heating.
6U backplanes are supplied with military conformal coating. Printed circuits boards are partially coated per MIL-I-4658C in areas in which do no affect VPX, VME, cPCI, or I/O connectors.
All 6U models integrate similar backplane electronics for easy switch-overs, retrofits or replacement parts.
Read More
6U SIXHEX-1 Power Supplies
6U SIXHEX (1'' Pitch) chassis PSUs support a wide variety of AC/DC input voltages (MIL-STD-704 & MIL-STD-1275) and customer defined DC power output combinations up to 825 watts. Available in different versions to suit the demand per DC Line of standard COTS open busses.
CM-PS-125/SIXHEX
All PSU models are fitted with Power Fail Monitor, remote voltage sensing, output voltage trim-up, time-delayed protection fuses, rear fan fuse and DC/DC converter remote shutdown.
To comply with MIL-STD-461E, a high capacity integrated EMI/EMC input voltage filter is fitted as standard on all 6U models.
Front-end FIAM modules are protected against DC reverse polarity. An optional reverse polarity diode may be fitted in series with power connector input pin IN (+).
Single-phase AC PSUs are fitted with a VICOR military Filter and Autoranging Rectifier Module (FARM) to provided EMI filtering, autoranging line rectification and inrush current limiting to meet MIL-STD-461E category A1b specifications for Electromagnetic Compatibility.
CM-PS-135/SIXHEX
DC PSUs are equipped with a VICOR military Filter and Attenuator Module (FIAM). This front-end device is fitted prior to the DC/DC converters to provide EMI filtering, inrush current limiting and transient protection.
200VAC 3-Phase PSU versions additionally incorporate AC/DC rectifier stage prior to the VICOR FIAM front-end modules.
6U SIXHEX (1'' Pitch) model PSUs incorporate isolated DC/DC converters and oversized hold-up capacitors to ensure proper operation during short power line failures. Outputs are protected against short-circuit, thermal-shutdown etc. PSUs are custom made to match the enclosure mechanics.
CM-PS-145/SIXHEX
| This 6U ATR Chassis is currently only available in 5 & 7 slot versions |
|---|
The PSU
in SIXHEX 1" pitch models is attached to a heat exchanger panel that provides both conduction and convection cooling. Internal air recirculation dissipates heat generated by the PSU through its panel via thermal conduction to the chassis frame.
Forced air that is drawn through the heat exchangers, passing over the PSU panel external fins & exhausted, removing the majority of heat.
6U ATR SIXHEX-1 Features
Rear Fan Options
6U SIXHEX-1 chassis are equipt with twin Rotron Military PX3 exhaust fans (-54°C to +125°C) or Rugged exhaust fans (-10°C to +70°C).
LED Front Panel Indicators
Up to 8 front panel LED indicators for chassis monitoring; power on/off status, system board failure, input voltage, temp., etc.
Front Panel
Custom layout with client logo, connectors & silk-screening or a general purpose panel with MIL-C-38999 connectors is supplied.
Top/Bottom Covers
Removable Heat Exchanger Top Cover fitted as standard. High Profile Heat Exchanger covers are available for additional clearance.
Chassis Metalwork
Precision machined aeronautical aluminum with MIL-DTL-5541F chromate coating. All panels & joints incorporate EMI gaskets.
Mounting Tray
Low profile with quick release system offers easy insertion/removal capability, weight optimized with minimized dimensions.
EMI/EMC Filter
High capacity integrated EMI/EMC input voltage filter is fitted as standard on all 6U models to comply with MIL-STD-461E.
Air Recirculation
Incorporating a low profile internal fan pack (4 fans) to recirculate air, improving card-cage, PSU & module heat dissipation.
Six Heat Exchangers
Fitted with 6 heat exchangers in both sidewalls, top chassis cover, rear PSU Panel & within lower internal card-cage walls.Capabilities
- Contaminant-free enclosure
- Available in ½ ATR, ¾ ATR versions
- VPX ready (1.0" Pitch)
- VPX, VME64, cPCI & Hybrid ready (0.8" Pitch)
- Accepts Conduction & Air-cooled 6U Modules
- Flexible Top & Bottom I/O wiring
- In-line EMI/EMC MIL-STD-461F Filter
- Up to 600W* Total Payload Power (30ºC Delta-T)
- Integrated Temperature Supervisory Unit (TSU)
- 40°C less than conventional 6U ATRs
- 6 Integrated Heat Exchangers
- Integrated Rear fan guards
- Dramatically increases payload MTBF by 4x*
- Maintenance free operation
- Front panel user indicators
- Stand alone low weight ATR
- Internal card-cage airflow recirculation
- Independent Fan & Power Supply input voltage
- Military Operating Temperature (-40°C | +85°C)
- Customizable to specific requirements
- Low Profile Mounting Tray with quick release
- Manufactured with US MIL components
6U ATR SIXHEX-1 Specifications
CM-ATR-125/SIXHEX |
CM-ATR-135/SIXHEX |
|
| WIDTH | 203 mm | 254 mm |
| HEIGHT | 259 mm | 259 mm |
| DEPTH | 510 mm | 510 mm |
| WEIGHT | 10 Kg | 14 Kg |
| CGTR COEFF | ΔT/W = 0.063°C | ΔT/W = 0.056°C |
| CPTR COEFF | ΔT/W = 0.069°C | ΔT/W = 0.0618°C |
| SLOTS | 5 | 7 |
| PSU MAX POWER | 825 Watts (28 VDC 675 Watts) | 825 Watts (28 VDC 675 Watts) |
| PSU V-INPUT | 28 VDC ±30%, 48 VDC ±30%, 72 VDC ±30%, 270 VDC ±30%, Autorange 90-132 VAC RMS & 180-264 VAC RMS 47-880 Hz, 3-Phase 200 VAC ±30% 47-880 Hz | |
| STD BACKPLANE | 6U (1" Pitch), VME64X or cPCI or VPX or Hybrid VME64X/VPX or VME64X/cPCI | |
| BOARD FORMAT | CCS: Conduction-cooled slots only or MCS: Slot-by-slot user configured card-cage allows intermixing conduction-cooled ANSI-VITA 48.2 & air-cooled ANSI-VITA 48.1 boards | |
| EXT. REAR FAN | 2 x Rotron PX3 | 2 x Rotron PX3 |
| F115-400 | 200 CFM | 200 CFM |
| F200-400 | 280 CFM | 280 CFM |
| F28 | 200 CFM | 200 CFM |
| F115-60 | 200 CFM | 200 CFM |
| F220-50 | 200 CFM | 200 CFM |
| INTERNAL FAN | 110 CFM | 110 CFM |
| FRONT PANEL AREA | 161 mm x 170 mm | 212 mm x 170 mm |
| I/O SUPPORTED | 6 Power Pins (23 Amp) & 504 I/O Pins (5 Amp) | 6 Power Pins (23 Amp) & 798 I/O Pins (5 Amp) |
| OPERATING TEMP | -40 °C to +85 °C Operating Temperature, -55 °C to 100 °C Storage Temperature | |
| MTBF | 25° GB 82,000 Hours, 65° AIC 27,000 Hours | 25° GB 80,000 Hours, 65° AIC 26,000 Hours |
| MOUNTING TRAY | CM-TR-125/SIXHEX | CM-TR-135/SIXHEX |
6U COTS MODELS
These highly optimized 6U chassis incorporate all proprietary technologies, features and well established mechanical & electrical solutions developed during the past 27 years.
FAC:Flow-through airflow open enclosure.S:Standard sealed contaminant-free enclosure.
SEF:Sealed with Extended Fins contaminant-free enclosure.
SEF-HP:Sealed with Extended Fins + 18/20 Heat Pipes contaminant-free enclosure.
HES:Sealed fitted with 4 integrated heat exchangers contaminant-free enclosure.
HES-1Sealed 1" pitch, fitted with 4 integrated heat exchangers contaminant-free enclosure.
SIXHEX:Sealed fitted with 6 integrated heat exchangers contaminant-free enclosure.
SIXHEX-1:Sealed 1" pitch, fitted with 6 integrated heat exchangers contaminant-free enclosure .
SIXHEX-16HP:Sealed fitted with 6 integrated heat exchangers & 16 heat pipes contaminant-free enclosure.
SIXHEX-20HP-1:Sealed 1" pitch, fitted with 6 integrated heat exchangers & 20 heat-pipes contaminant-free enclosure.
SEVENHEX-CHP-1:Sealed 1" pitch, fitted with 7 integrated heat exchangers & 32, 36 or 46 heat-pipes contaminant-free enclosure.
6U ATR MIL Certificates
6U SIXHEX-1 Ordering Information
CM-ATR-S5 /CT /I /W /3.3 /D1 /R /S /FP /TC /BC /CS /F /G /C
/S5 Enclosure Size- CM-ATR-125: ½ ATR Long Size - 5 Slots (1" Pitch).
- CM-ATR-135: ¾ ATR Long Size - 7 Slots (1" Pitch).
- SIXHEX-1: Sealed (1" Pitch) enclosure with 6 Heat Exchangers in sidewalls, top cover, rear panel & internal card-cage.
- VME64x: Military VME64x Backplane with 5 row 160 pin J1/J2 and 95 pin J0 connectors.
- VME64xK: Military VME64x Backplane with 5 row 160 pin J1/J2 & 75 pin key-slot J0 connectors.
- cPCI: Military Compact PCI Backplane.
- VPX: Military VITA 46 VPX Backplane.
- VPX/VME64x: Hybrid VPX mixed with VME64x Military Backplane.
- VME64x/cPCI: Hybrid VME64x mixed with cPCI Military Backplane.
- 28VDC: 28 VDC Input.
- 48VDC: 48 VDC Input.
- 72VDC: 72 VDC Input.
- 270VDC: 270 VDC Input.
- 90-264VAC: Autorange 90-264 VAC @ 47-880 Hz Input.
- 200VAC-3Ph: 200 VAC 3 Phase @ 47-880 Hz Input.
CM-ATR- 1 25 PSU
- A-475W: 28 VDC (+5 VDC @40A, +3.3 VDC @22A, ±12 VDC @8A).
- A-575W: All PSUs (+5 VDC @40A, +3.3 VDC @22A, ±12 VDC @12A).
- A-675W: 28 VDC (+5 VDC @80A, +3.3 VDC @22A, ±12 VDC @ 8A).
- A-775W: All PSUs (+5 VDC @80A, +3.3 VDC @22A, ±12 VDC @12A).
- B-450W: 28 VDC (+5 VDC @20A, +3.3 VDC @45A, ±12 VDC @8A).
- B-550W: All PSUs (+5 VDC @20A, +3.3 VDC @45A, ±12 VDC @12A).
- B-565W: 28 VDC (+5 VDC @20A, +3.3 VDC @80A, ±12 VDC @ 8A).
- B-665W: All PSUs (+5 VDC @20A, +3.3 VDC @80A, ±12 VDC @12A).
- C-475W: 28 VDC (+5 VDC @20A, +3.3 VDC @22A, +12 VDC @16A, -12 VDC @8A).
- C-575W: All PSUs (+5 VDC @20A, +3.3 VDC @22A, +12 VDC @21A, -12 VDC @12A).
- C-775W: 28 VDC (+5 VDC @20A, +3.3 VDC @22A, +12 VDC @41A, -12 VDC @8A).
- C-825W: All PSUs (+5 VDC @20A, +3.3 VDC @22A, +12 VDC @41A, -12 VDC @12A).
CM-ATR- 1 35 PSU
- A-475W: 28 VDC (+5 VDC @40A, +3.3 VDC @22A, ±12 VDC @8A).
- A-575W: All PSUs (+5 VDC @40A, +3.3 VDC @22A, ±12 VDC @12A).
- A-675W: 28 VDC (+5 VDC @80A, +3.3 VDC @22A, ±12 VDC @8A)*.
- A-775W: All PSUs (+5 VDC @80A, +3.3 VDC @22A, ±12 VDC @12A)*.
- B-450W: 28 VDC (+5 VDC @20A, +3.3 VDC @45A, ±12 VDC @8A).
- B-550W: All PSUs (+5 VDC @20A, +3.3 VDC @45A, ±12 VDC @12A).
- B-564W: 28 VDC (+5 VDC @20A, +3.3 VDC @80A, ±12 VDC @8A)*.
- B-664W: All PSUs (+5 VDC @20A, +3.3 VDC @80A, ±12 VDC @12A)*.
- C-475W: 28 VDC (+5 VDC @20A, +3.3 VDC @22A, +12 VDC @16A, -12 VDC @8A).
- C-575W: All PSUs (+5 VDC @20A, +3.3 VDC @22A, +12 VDC @21A, -12 VDC @12A).
- C-775W: 28 VDC (+5 VDC @20A, +3.3 VDC @22A, +12 VDC @41A, -12 VDC @8A)*.
- C-825W: All PSUs (+5 VDC @20A, +3.3 VDC @22A, +12 VDC @41A, -12 VDC @12A)*.
- D-550W: 28 VDC (+5 VDC @40A, +3.3 VDC @45A, ±12 VDC @8A)*.
- D-650W: All PSUs (+5 VDC @40A, +3.3 VDC @45A, ±12 VDC @12A)*.
- E-550W: 28 VDC (+5 VDC @20A, +3.3 VDC @45A, +12 VDC @16A, -12 VDC @8A)*.
- E-650W: All PSUs (+5 VDC @20A, +3.3 VDC @45A, +12 VDC @21A, -12 VDC @12A)*.
- F-575W: 28 VDC (+5 VDC @40A, +3.3 VDC @22A, +12 VDC @16A, -12 VDC @8A)*.
- F-675W: All PSUs (+5 VDC @40A, +3.3 VDC @22A, +12 VDC @21A, -12 VDC @12A)*.
CM-ATR- 1 35 Dual Redundant PSU
- R2x500W: (+5 VDC @25A, +3.3 VDC @23A, ±12 VDC @12A).
28 VDC = 28 VDC input only
- 3.3-75W*: 3.3VDC @ 22A (in Lieu of 3.3 VDC @ 5A), Optional DC/DC AUX0 converter on Backplane fitted for 3.3VDC
- NOTE: Option suited for 1st generation PSU models 300W/400W/500W. Note: If /3.3-75W is not selected, DC/DC power socket AUX0 remains free to the user
- D1: 100W Optional DC/DC Converter on Backplane. User defined output. Auxiliary DC/DC output options: +2VDC 50W, -2VDC 50W, +3.3VDC 75W, -3.3VDC 75W, +5VDC 100W, -5VDC 100W, +12VDC 100W, -12VDC 100W, +15VDC 100W, -15VDC 100W, +28VDC 100W, -28VDC 100W, +48VDC 100W, -48VDC 100W.
- Ordering Examples: 48-100W » 48VDC @ 2A | -5-100W » -5VDC @ 20A | 2-50W » 2VDC @ 25A.
CM-ATR- 135 only
- RA-475W: 28 VDC (+5 VDC @40A, +3.3 VDC @22A, ±12 VDC @8A).
- RA-575W: All PSUs (+5 VDC @40A, +3.3 VDC @22A, ±12 VDC @12A).
- TSU fitted as standard.
- CMP: Standard CM front panel fitted with MIL-C-38999 connectors.
- UDP: User defined front panel layout (requires customer drawing).
- STC: Standard Top Cover. ‡ 20mm.
- FTC: Low Profile Top Cover with cooling fins. ‡ 20mm.
- HTC: High-profile Top Cover. ‡ 35mm.
- HETC: Heat Exchanger Top Cover. ‡ 20mm. (Fitted as standard).
- EHETC: Extended Heat Exchanger Top Cover. ‡ 35mm.
- SBC: Standard Bottom Cover. ‡ 20mm.
- HBC: High-profile Bottom Cover. ‡ 50mm. (Fitted as standard).
- MCS: Mixed Card-cage Slots (conduction-cooled & air-cooled boards).
- CCS: Conducton-cooled Card-cage slots (conduction-cooled boards only). (Fitted as standard).
Fans Pack available CM-ATR-125 & CM-ATR-135
- F115-400: 2x Rotron PX3 Military fan fitted for 115VAC @ 400Hz (100CFM each).
- F200-400: 2x Rotron PX3 Military fan fitted for 200VAC @ 400Hz 3-Phase (140CFM each).
- F28: 2x Rotron PX3 Military fan fitted for 28VDC (100CFM each).
- F115-60: 2x Rugged fan fitted for 115VAC @ 60Hz (100CFM each).
- F220-50: 2x Rugged fan fitted for 220VAC @ 50Hz (100CFM each).
Vehicle air-plenum assembly
- VAP: Vehicle Air-Plenum according to customer specifications (external forced air source).
- STDG: Standard Rotron PX2/PX3 finger guards.
- EMIG: Optional EMI shielding finger guards with honeycomb filter.
- GNF: Optional finger guards with low acoustic noise filter (-5dB).
- B: Black, G: Navy Grey, E: Army Dark Earth, W: White, R: Red, PT: Platinum, YW: Yellow, GN: Green, BLU: Dark Blue, CR: Chromate MIL-C-5541 or O: Other (user defined).
CM-ATR-135/SIXHEX/VPX/28VDC/F-575W/24-100W/CMP/HETC/HBC/CCS/F115-400/EMIG/B
- 3/4 ATR, 7 slot 6U, VPX Avionics Enclosure.
- Six Heat Exchangers.
- Extended 1" Pitch 7 slot VITA 46 VPX Backplane for 6U boards.
- 28VDC input Power Supply Unit with F-575W (+5VDC @ 40A, +3.3VDC @ 22A, +12 VDC @16A, -12 VDC @8A).
- (+) 24VDC @ 4A DC/DC AUX1 user output on Backplane.
- Temperature Supervisory Unit (standard).
- Standard CM Computer Front Panel.
- Heat Exchanger top cover as standard.
- Extended high profile bottom cover as standard.
- Conduction-cooled Card-cage Slots (conduction-cooled boards only).
- 2x Rotron PX3 military fan fitted for 28VDC installed at the rear (200CFM total).
- Rotron EMI shielding finger guards.
- Enclosure Black color.
