CM COTS 6U Modules

Over 14,000 VMEbus modules in service, serving Military, Industrial & Commercial applications in all corners of the globe.

Military / Industrial / Commercial

Supplying a full range of module versions to complement varying customer requirements that are supplied with True COTS availability.

Rugged Long Life Modules

Military 883 VMEbus modules are provided with conduction cooled thermal overlay, greatly improving capability to withstand shock & vibration.

Quick Select

Filtered Search

Reset

Modules by Application

CPU
CPU Modules
CM-CPU-40/60 is a general purpose 32 bit computer that implements classic DIL packages. Supplied with extensive BSP software.
DA
Digital to Analogue
CM-DA-40 & CM-DA-50 are general purpose Digital-to-Analog boards for applications requiring special voltages or wide variations in channel ranges.
VID
Graphic Modules

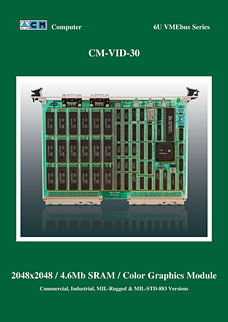

CM-VID-30 is a Color Graphic board built on a 16bit TS-68483 dedicated processor. Supported resolutions up to 2048x2048.
MEM
Memory Expansion
CM-MEM-40 is a 32 bit Memory Expansion board with low heat CMOS technology for integrated applications. Supports FLASH, SRAM or EPROM.
AD
Analogue to Digital
CM-AD-45 is a 32 channel A/D board. On-board auto-conversion circuitry performs all tasks relative to multiplexing, sampling & converting of analog input signals.
DI
Discrete Input
CM-DI-40 optocoupled 64 channel input board with voltage stage per channel. CM-DI-42 is a 64 channel, non externally powered, optocoupled input board.
SDS
Synchro-Resolver I/O
CM-SDS-40 is a Synchro / Resolver board with 4 input + 4 output channels. Supporting S/R voltage ranges & incorporating auto-conversion circuitry.
SD
Synchro-Resolver Input
CM-SD-40 is a 16 channel Synchro / Resolver input board. Supporting common S/R voltage ranges & incorporating auto-conversion circuitry.
DS
Synchro-Resolver Output
CM-DS-40 Synchro/Resolver 8 channel I/O board that supports common S/R voltage ranges & incorporates auto-conversion circuitry.
DIO
Discrete Input/Output

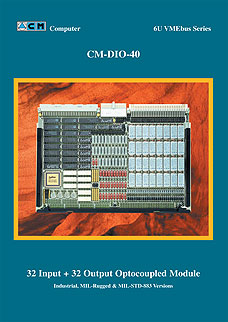

CM-DIO-40 is a 32 input + 32 output discrete board featuring overvoltage protection; galvanic isolation, rectifier & filter to support a range of AC/DC voltages.
DO
Discrete Output
CM-DO-40 discrete output board with 64 channels. Channel outputs support; relay, optocoupler, photo-MOS, etc. SSR versions offer isolated outputs (>1000V).
IOC
Input/Output
CM-IOC-40 is a universal 16 serial channel board. Based on the SCC Z-8530/85230 with up to 20 MHz & communications up to 5 Mbs.
